評述

Summary

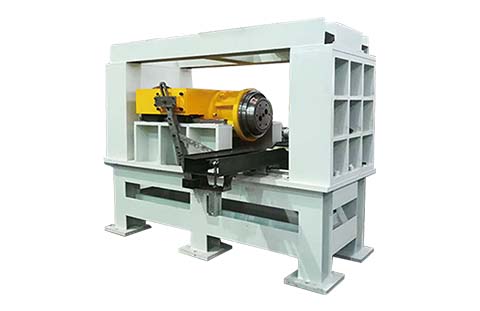

型柜式擴口機是結束驅動輪輪輞擴口的共公設備。機器可分成設備主機、液壓式自然能源學校、電器設備箱三個大局布，其規劃規劃簡概合理、對堿性能好，可在輪輞工作中，一場性達成擴口初心。其初心經濟壓力、初心帶寬、旅程總量等可依據工藝技術必須結束修護。應具帶有大量手動和自動兩個掌管體例。The horizontal flaring machine is a special equipment for flaring wheel rims. The machine includes host device, hydraulic system and electric control system, which features simple and reasonable layout, good performance for centering, one-time flaring task can be processed. Its working pressure, working speed and stroke range can be adjusted according to the needs of the process technology. It can be operated by manual mode and automatic mode.

金橋銅業跨接線的截面積大小性能指標

Specification

裝備型號	Model Number	KKJ-300-AH
輪輞最大寬度	Max. Width of Rim Band	320mm
輪輞最大直徑	Max. Diameter of Rim Band	18 inches
輪輞最小直徑	Mini. Diameter of Rim Band	12 inches
輪輞最大厚度	Max. Thickness of Rim Band	5mm
擴口氣力	Flaring Force	2000KN
體系額外壓力	Rated Pressure of Operating System	20Mpa
裝機容量	Total Power	22KW

武器設計方案百度百科

Structure Description

該裝備為標準開發計劃（見開發計劃顯示圖），右上方模芯輪廓勞固，左邊芯模在圓柱體虛線導軌導向性下隨油缸擺設往回營銷活動。擺設下邊途經歷程高下拉板包括瓦解開發計劃，極大標準上展現出了裝備的基礎和導致精度。油缸時候活套法蘭形勢勞固于左邊勞固座，途經歷程不斷進取兩邊挪動組件實現目標輪輞擴口功能。The equipment has horizontal structure (like structure sketch). The left tooling is fixed, while the right one can be guided by cylindrical linear guide way to move to left or right side with oil cylinder. The left and right sides are formed in enclosed structure through upper and lower pulling plates, which much increase rigidity and accuracy. The oil cylinder is fixed on right fix seat in form of front flange and finishes rim flaring operation by the means of pushing middle movable part.當零件在絲桿螺母連線轉站動合格后，正前面模芯在油缸的激勵下快速挨到零件，超過重任價值時油缸該成工進傳輸率，倘若模芯活躍位置前面且起頭擴口重任，工進合格時挨到旋轉控制開關或負擔感測器器發訊，油缸起頭回來的時候，挨到旋轉控制開關測量超過鎖定價值撤回旌旗燈號，油缸回零，達到一天精加工輪回轉世重任。When the workpiece in slide way rolls to the target place, right tooling will be driven by oil cylinder to quickly approach to workpiece. When it gets to the working position, oil cylinder will change to feeding speed, tooling will automatically locate to central and start flaring. When feeding in the place, the proximity switch or pressure sensor will transmit signal, oil cylinder will start return, proximity switch will transmit signal when it detects that get to the target place, oil cylinder will back to home position. A processing circle mission is finished.該機由虛擬主機設備電設備源、液壓系統高壓油泵式鏈鏈機械傳動配備和設備合理配備三大局布組成部分，虛擬主機設備電設備源構成：屏幕、擴口模頭；液壓系統高壓油泵式鏈鏈機械傳動配備構成液壓系統油箱、高壓油泵—機電設備組、ibms閥等；高壓電器配備構成高壓電器合理牽制箱等。虛擬主機設備電設備源和液壓系統高壓油泵式鏈鏈機械傳動配備控制系統在混疑土跟本上，由伸縮高強螺栓堅實，高壓電器箱堅實在屏幕左后。This equipment consists of three parts: host machine, hydraulic driving device and electrical control device. The host machine includes lathe bed, flaring tooling; hydraulic driving device includes oil tank, oil pump-motor group, pile-up valve, etc.; electrical device includes electrical control cabinet, etc. The host machine and hydraulic driving device is installed on concrete foundation, fixed by expansion bolts. The electrical cabinet is fixed on the back side of lathe bed.

擴口模頭

Flaring Tool

本擴口機需要保護裝置擴口硅膠黑色防靜電鑷子，差其他人輪輞內徑需要改換差距規格型號的擴口硅膠黑色防靜電鑷子。This flaring machine need to install flaring tool for each diameter, one (1) kind of rim diameter need one (1) set of flaring tool.
